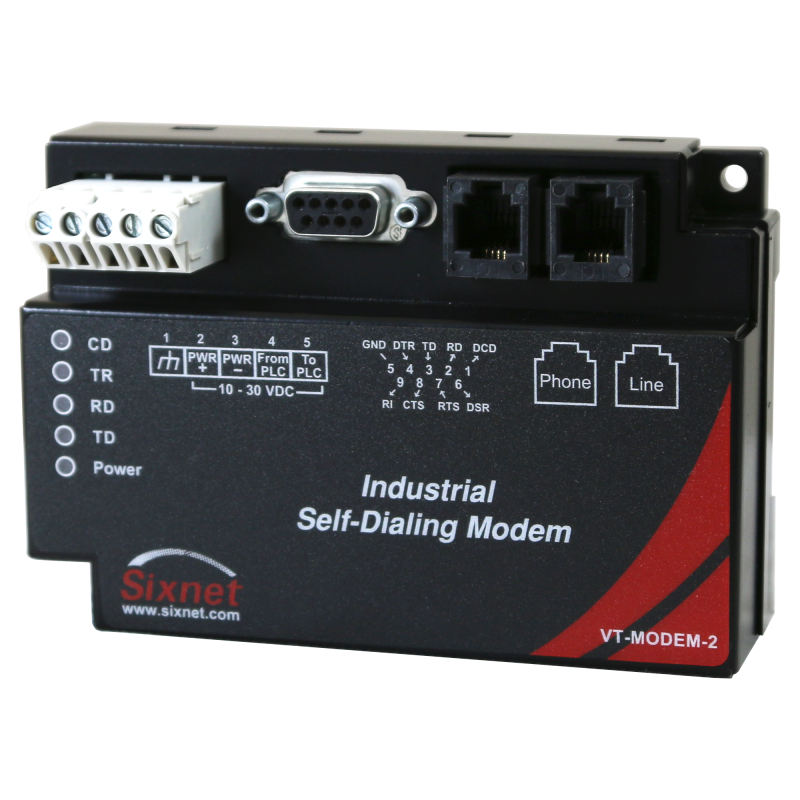

Phone Modem-PLC Self-Dialing & Auto-Answer 33.6K

Description

Telephone Lines

Max. data rate 33.6 kbps for  -2

Compatibility V.90, V.92 (-5 only); V.34, V.32 bis, V.32, V.22, V.22A/B, V.23, V.21, Bell 212A and 103

Data compression V.44; V.42 bis, MNP 5

Error correction V.42 MNP 2-4

Max. fax rate 14.4 kbps for -2

Fax capabilities V.17,V.29/V.27/V.21, FClass 1,1.0 (-1,-2,-3)

Ringer and jacks 0.3 and RJ11 (line and auxiliary)

RS-232 Port

Max. RS-232 Rate 57.6kbps for -2

RS-232 (DCE) TD, RD, CTS, RTS, CD, DTR, DSR, RI, GND

Command Set standard AT and S register (see help)

Status LEDs CD, DTR, RD, TD, Power

PLC Discrete I/O Interface

“Trigger” Input: Starts auto-dialing when TRUE

Voltage range: 9 to 30 VDC (6.5 mA at 24 VDC)

Max OFF voltage: 5 VDC

“On-line” Output: is ON when connection exists

Output type: Sourcing — switches supply power

Output current:100 mA maximum​

​General Characteristics

Input voltage 10-30 VDC for  -2

Input current @ 24 VDC (typical)

50 mA (Sleep mode 30 mA)

Operating Temp. -30° to 70°C (Storage: -40° to 85°C)

Humidity 5% to 95% RH (non-condensing)

Flammability UL 94V-0 materials

Telecom Ratings FCC part 68, Industry Canada CS03-8, CTR21 (98/482/EC); ACA TS 001; ACA TS 002

Electrical Safety UL 508, CSA C22.2/14; EN61010-1 (IEC1010), IEC 950, AS/NZS3260

EMI emissions FCC part15, ICES-003, Class A; EN55022; AS/NZS3548

EMC immunity EN50082-1 (IEC801-2, 3, 4)

Vibration IEC68-2-6

Hazardous locations (Zone 2) UL1604, CSA C22.2/213 (Class I, Div 2, Groups A, B, C, D); Cenelec, EN50021 (EEx nA II T4)

DIN-rail or panel mounting
